ARC 275 Lotus Welding Machine

Product Description

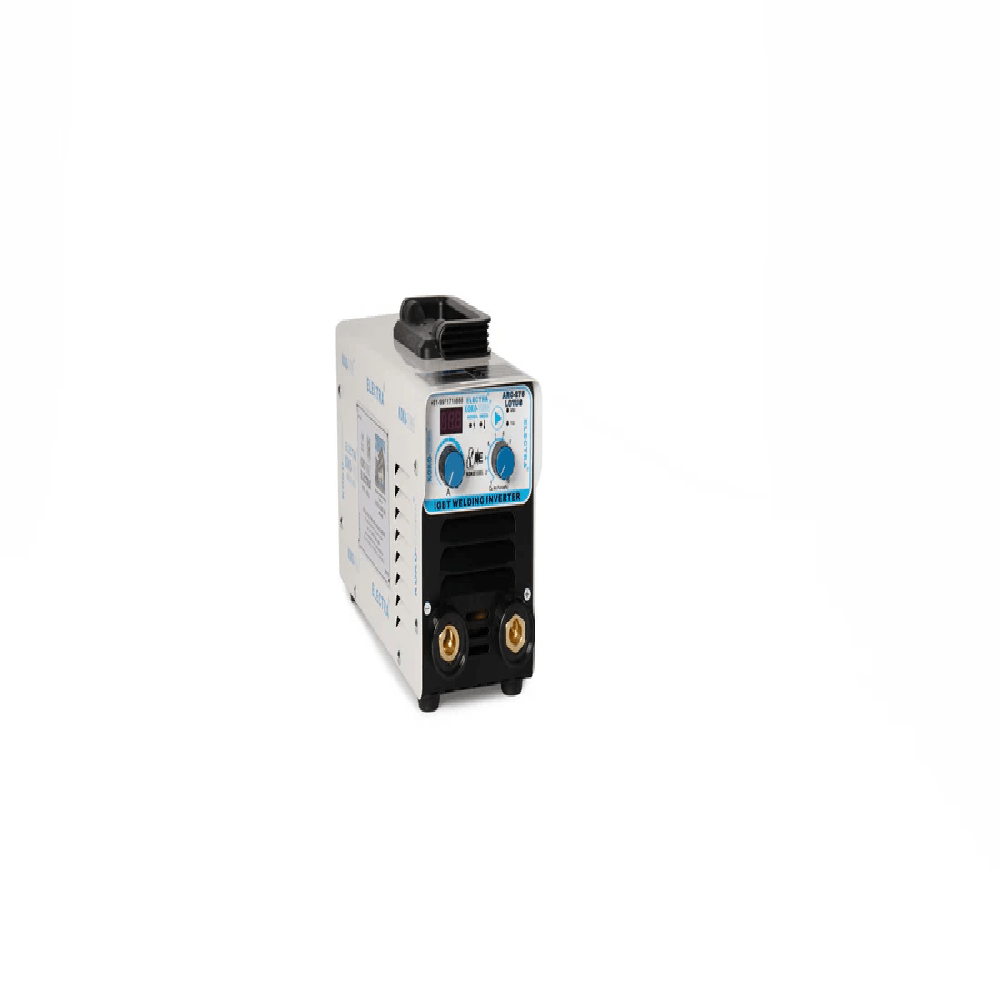

ARC-275 Inverter Welder - Product Description

Introducing the ARC-275, a versatile and reliable inverter welder designed for demanding applications.

Key Features:

• Powerful Performance: Delivers a robust 275A MMA welding output and 200A TIG welding output for efficient and productive welding operations.
• Versatile Applications: Suitable for a wide range of welding tasks, including MMA (Stick) and TIG welding.
• Reliable Power: Equipped with a 1-phase AC220V15% input supply for stable and consistent performance.
• Compact and Lightweight: Weighing only 5.0kg, the ARC-275 is highly portable and easy to transport.
• Durable Construction: Robust design and IP23 enclosure protection ensure durability and long service life.
• User-Friendly: Intuitive controls and a compact size make the ARC-275 easy to operate and transport.

Technical Specifications:

• Model: ARC-275
• Input Supply Voltage: 1-PHASE AC220V15%
• Frequency: 50/60Hz
• No-load Voltage:
  • MMA: 64V
  • TIG: 59V
• Rated Output:
  • MMA: 275A/27.6V
  • TIG: 200A/17.6V
• Output Current Adjustable Range:
  • MMA: 20-275A
  • TIG: 20-250A
• Rated Load Duration Factor:
  • MMA: 60%@40 C
  • TIG: 60%@40 C
• Max. Rated Input Current | 1 max: 43.9A
• Max. Effective Input Current | 1 eff: 26A
• Max. Rated Input Capacity: 8.7KVA
• Static External Characteristic: Step-down characteristics
• Enclosure Protection Class: IP23
• Weight: 5.0Kg
• Overall Dimensions (L x W x H): 130340220

The ARC-275 is the ideal choice for professionals seeking a reliable, powerful, and easy-to-use inverter welder for a wide range of applications.
